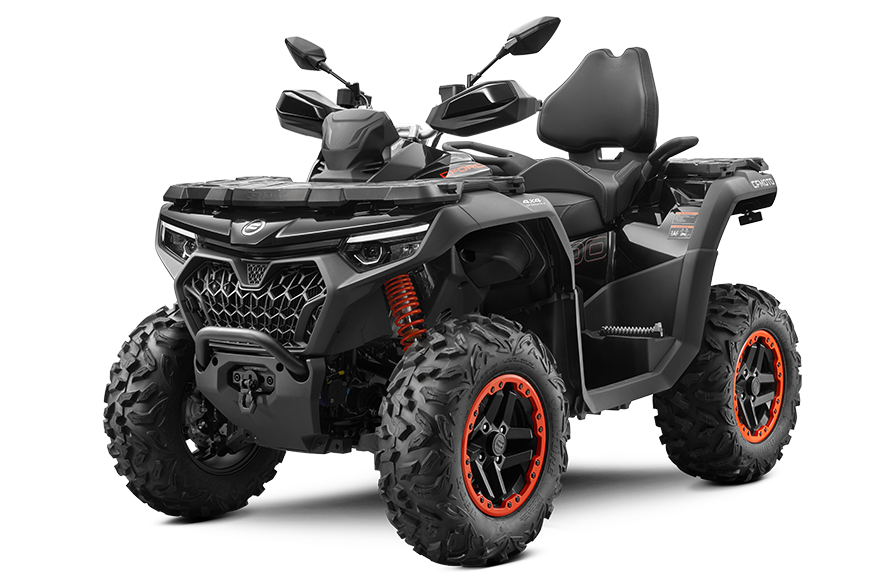

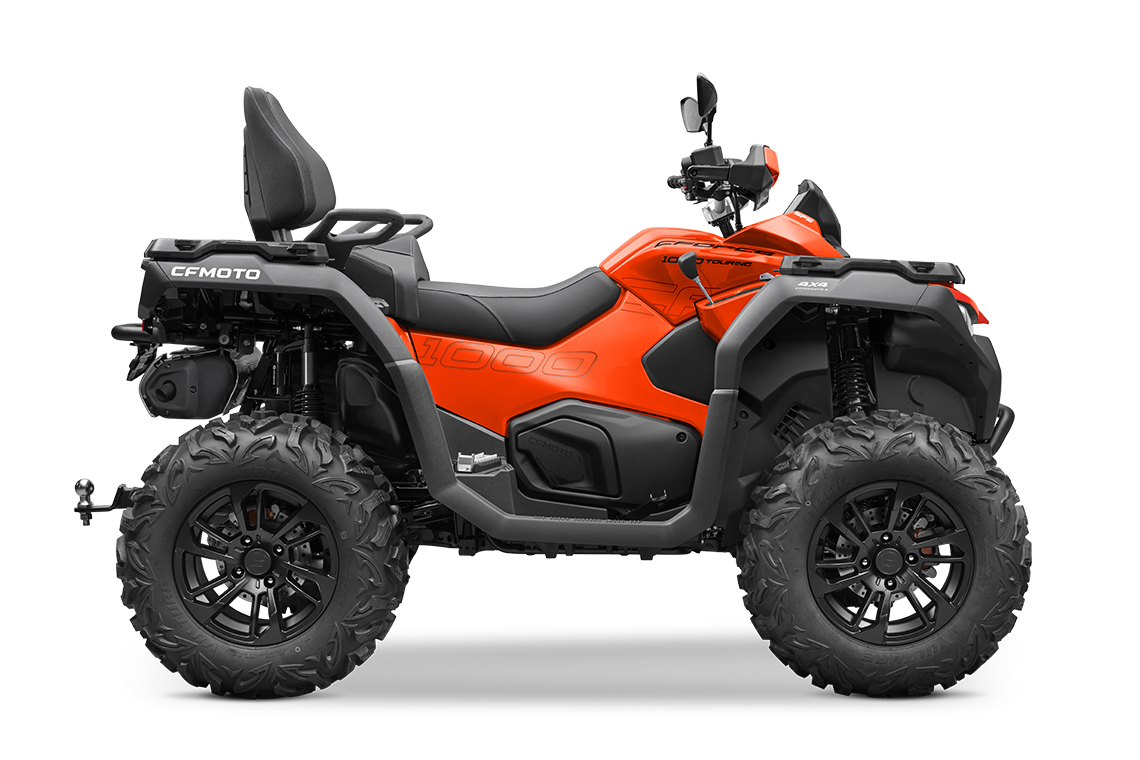

CFORCE 1000

CFORCE 1000

CFORCE 1000

CFORCE 1000

OVERVIEW

CFORCE 1000

CFORCE 1000, more power than any other members in CFMOTO ATV family deploys a purpose built liquid-cooled engine, a great combination of performance, functionality and aesthetics. CFMOTO is always progressive to push the limits further higher to give you unrivalled riding experience.

The model picture is only for your reference. The vehicle configuration may be subject to change due to local laws and regulations in different countries and regions.

SPECIFICATIONS

The specs is only for your reference. The specifications may be subject to change due to local laws and regulations in different conutries and regions.

Engine Type: Reciprocating (Otto Cycle)


Displacement: 962.6 cc


Compression Ratio: 10.6±0.5:1


Fuel Supply: SFI


Ignition: ECM


Transmission type: CVT


Length x Width x Height: 2395 x 1264 x 1420 mm


Wheelbase: 1480 mm


Seat Height: 585 mm


Minimum Ground Clearance: 285 mm


Curb Weight: 490 kg


Minimum Turning Diameter: 7.6 m


Payload Capacity: 240 kg


Fuel Capacity: 30L


Colors: Crystal Orange, Ghost Gray, True timber camo


Drive: Switchable 2WD/4WD


Brake: Four calipers disc brake rim brake


Suspension: Front: Double arm, independent suspension
Rear: Trailing Arm independent Suspension


Shock Absorber: Spiral spring + oil shock absorber


RimFront: 14 x 7.0 AT; Rear: 14 x 8.0 AT


TireFront: 27 x 9R14; Rear: 27 x 11R14
